XPC M90s / M90
Sizes: 6kVA, 12kVA, 18kVA
Xtreme Power Conversion

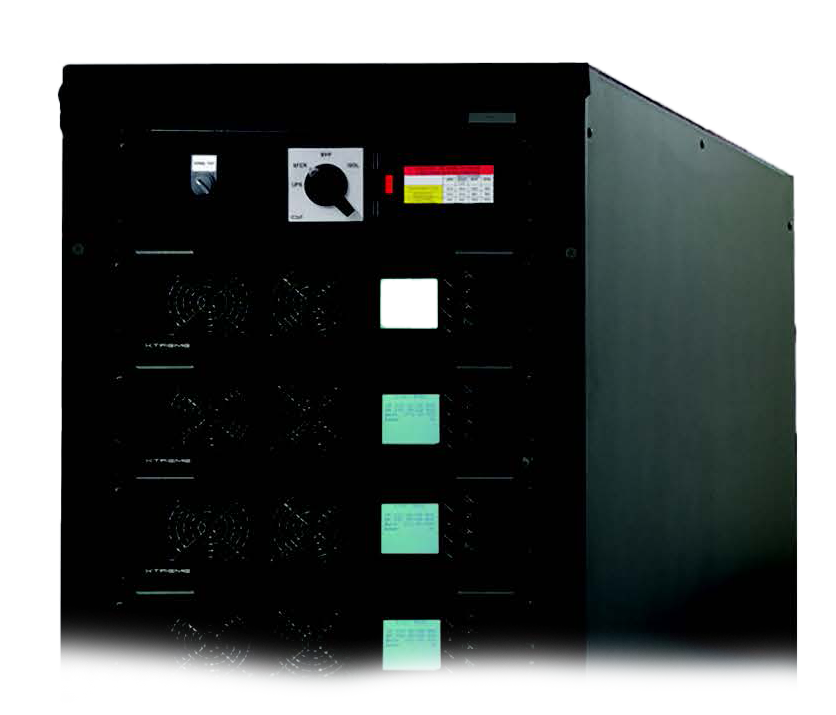

M90S Custom
Sizes: 6kVA, 12kVA, 18kVA
Scalable, Modular, Flexible UPS for Split-Phase Applications up to 60kVA
Xtreme Power M90S Single Phase to 24kVA and M90 Three Phase to 60kVA Custom UPS is a scalable, modular, customizable solution that combines continuous power availability and the highest efficiency for mission critical applications.
M90S Custom provides reliable 240/120V or 208/120V (2Ph+N+G) split phase power up to 60kW. Applications include Containerized Data Centers, Edge Computing and Cell Tower applications which do not have access to three phase utility or generator power.
Capacity, redundancy and battery runtime can all be customized to meet your specific needs. Hot swappable power and battery modules provide rapid maintenance and repair.
Request Pricing
Build a power solution that is specific for your needs.
Ask Us Any Question!
Product Snapshot
Hot swappable power and battery modules
Capacities: 24kVA, 30kVA, 36kVA, 42kVA, 48kVA, 54kVA, 60kVA
Modular for capacity or N+1 redundancy
Up to 98% ECO mode or 93% online efficiency
Unity output power factor (kVA=kW)
3 years electronics, 3 years battery warranty (USA and Canada)
Features
Scalable
when power or runtime requirements change, modules can be added to increase capacity
Maintenance bypass
manually transfer critical loads from UPS power to utility power, enabling M90S maintenance without interrupting the critical load
Highest availability
system can be configured with redundant power and battery modules
Reduce energy cost
best in class energy efficiency provides lowest energy consumption and heat output
Power module LCD
each power module includes LCD display, providing module and system detailed information
Services and support
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.
