On-Site Power System Analysis
Assessing electrical environments in a facility requires power analysis solutions & monitoring equipment.
Voltage Regulation Solutions. Delivered.
Monitoring
Assessing electrical environments in a facility requires monitoring equipment. This is non-invasive equipment that can be set up at the service entrance, or throughout the facility at the load centers. Simple Fluke meters will not capture the electrical events which disrupt your loads. A monitoring device must be placed on the line over a period of time to capture nominal voltage, sags, surges, and events that would wear on your equipment.
Analysis
Once monitoring is complete the system is returned to FGC and our analytics team provides a conversion of the data into a form that is useful to you. Below are examples of some real life events recorded at a customer site.

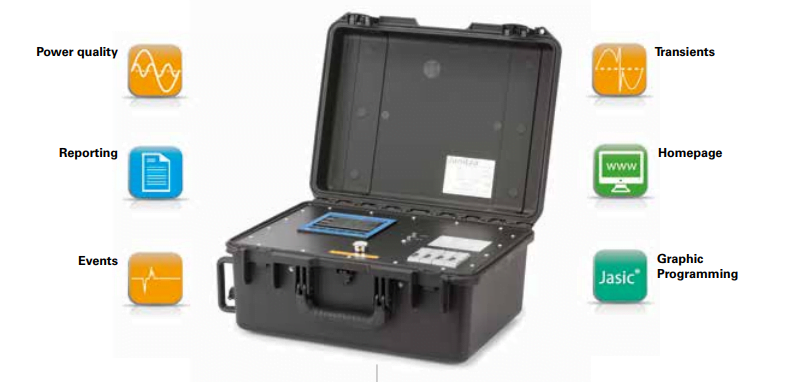

Power Analyzers
Power Analyzers are available to ship to your facility. It can be installed by your facility team or one of our approved installation specialists.
Call 855-240-6776 to schedule a monitor installation or fill out the form below.
Looking for Voltage Correction Products?
Monitoring Analysis is a must to determine if you need Voltage Correction only, or to include storage runtime
Customer Data Log Entry

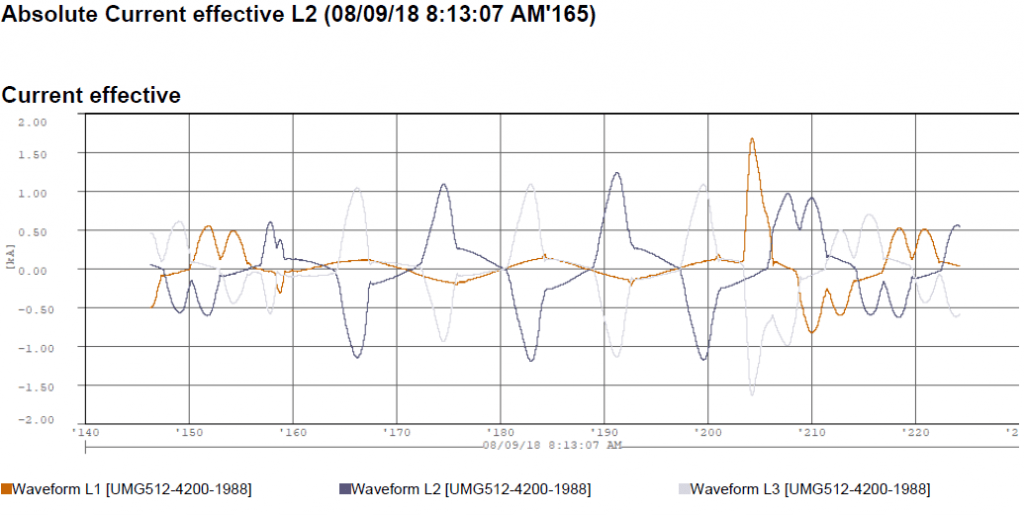

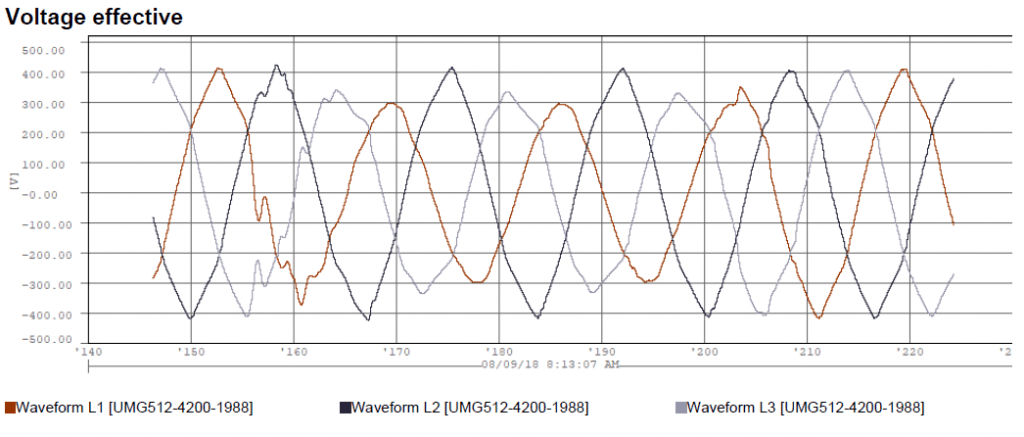

September 8th 8:13 AM – VERY DAMAGING TO EQUIPMENT
ff0909Multi-Cycle Voltage Sag (25% of 100%) For 4 cycles continues to draw load on two phases at overcurrent 1000-1500 Amps (200%-300%) – if load operating equipment most certainly damaged
Customer Data Log Entry

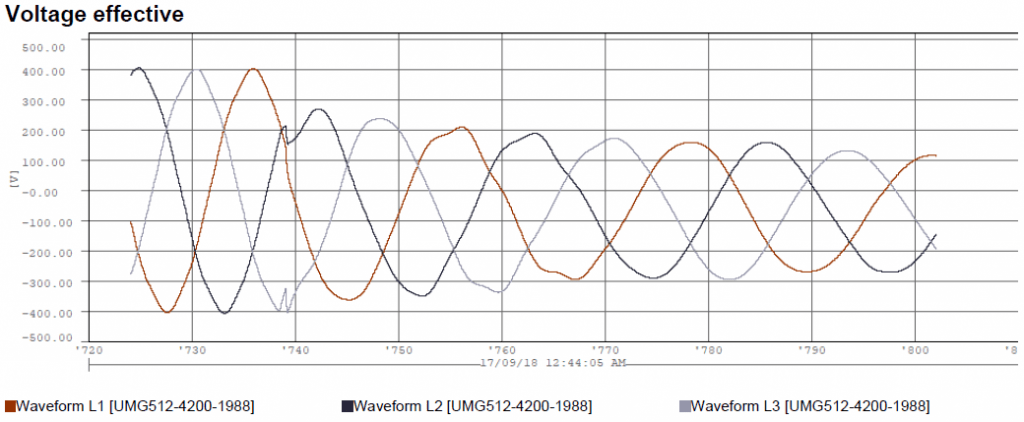

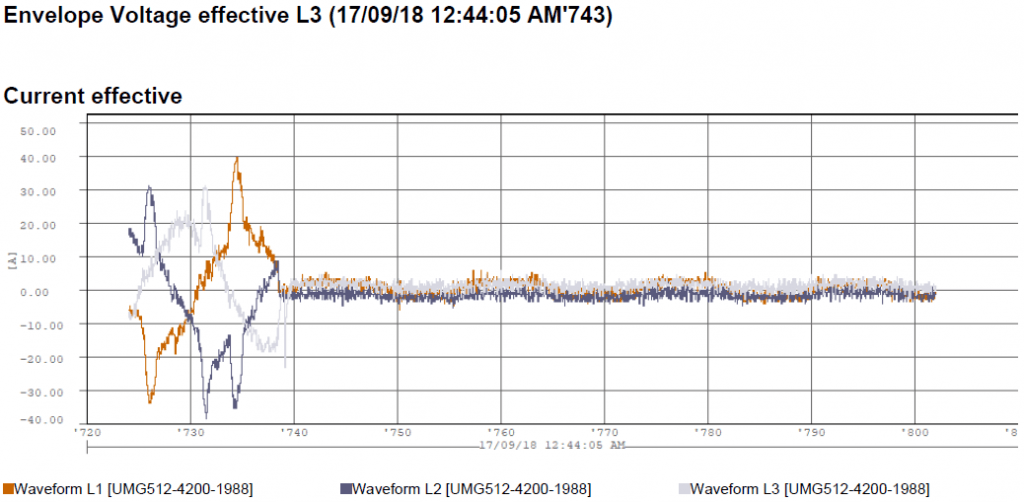

September 17th 12:44 AM –
Voltage Sag (50%) Load Current drops to zero resulting in load loss or this is a planned shutdown event. Voltage sag continues with no load to complete outage lasting until 3:20am (see next graph). Either supply utility eliminated or user breaker interaction.
Monitoring Analysis is a must to determine if you need Voltage Correction only, or to include storage runtime
Have an ICP site survey done to survey your facility and install a power metering device.
When you install equipment that will correct power and hold voltage within your facility, you will be providing your facility with protection against all outside influences of power. Halting wear and tear on other equipment in the facility by having stable voltage and power factor is the goal. The long term positives are lowered operations and maintenance costs by limiting voltage and amperage anomalies inside the facility. It is common to vet these issues by installing a monitoring device at the service entrance of the facility utility power. This is a low-cost method to really understand these issues and to make a proper diagnosis.
We are available to review electrical one-lines, Power Reports, Demand Usage, and any other data on your facility power.
Call your ICP Technical Representative today to discuss options to increase efficiency in your facility and correct our facility power issues!
WHY CHOOSE FGC?
The Customer Experience
FGC Asset Management Software - Asset / Portfolio Tracking
Roll all your Critical Assets and Maintenance Programs into one location - Facility Keys Preferred Platform
Log historical maintenance and repair data, view current calendar of maintenance activities, manage and control Asset Lifecycle. Budgeting, Billing, Reporting all in one easy location.
7 x 24 FGC Emergency Service Response
24x7 emergency service Services through FGC Services and Response Platform, 7x24 NOC.
Preventative Maintenance Plans Provided by FGC Services
Keep all your systems free of downtime with Preventative Maintenance Programs.
Plans include Full Service, Preventative Maintenance Plus Emergency Response, and PM Only.
Parts coverage inside your warranty period, extended plans available for Annual or Multi-Year Programs
FGC Comprehensive Services - Your Partner in Business
FGC is a 20 Year Nationally Recognized Distributor and Service Provider for Critical UPS Systems, and Battery Services. National Equipment Sales coverage in the Continental US States, National Service Coverage in the Continental US States. Your trusted Partner for all Critical Equipment, Technical Services, or Installation needs.
FGC 7x24 Emergency Response / Repair UPS
FGC National Service Coverage for Emergency Calls, On-Site Response, and Remediation.
Contact Us
Conduct a site survey to install a power metering device in your facility.
Installing equipment to stabilize power and maintain voltage in your facility protects against external power influences, preventing wear on other equipment. The aim is stable voltage and power factor, leading to reduced long-term operational and maintenance costs by minimizing voltage and amperage anomalies. A cost-effective approach involves installing a monitoring device at the facility's utility power service entrance for a comprehensive understanding and diagnosis of these issues.
