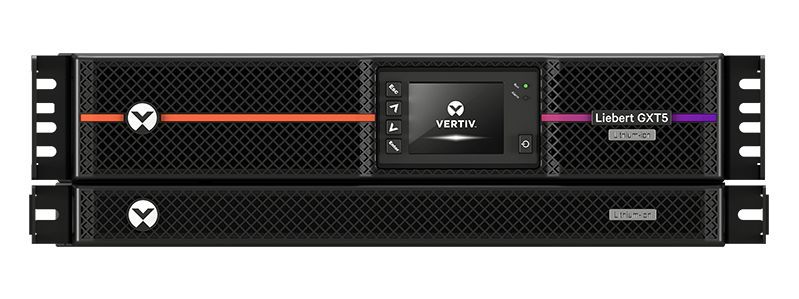

Vertiv GXT 5 UPS VRLA / Lithium

500VA - 20kVA

APPLICATIONS: Controls, Motors, Drives, Robotics, Medical, Lab, Extrusion, 3d Printing, CNC, All Plant and Process Equipment Affected by unstable voltage


 SOLVES: Undervoltage, Overvoltage, Voltage Sags, Surges, unreliable utility voltage and internally-derived Voltage Issues.

Technology Choice:   BEST IN CLASS - Pulse Width Modulated IGBT Insulated Gate BI Polar Transistor Converter. Internal Surge Suppression. Overload Capacity 150% for 10 minutes.

Why? Converter measures incoming voltage, corrects by adding or subtracting (Buck/Boosts) voltage to within +/- 0-3% output voltage range.

Power Correction Level 1:  +/- 1 % on Output Power

Input Voltage Tolerance:  +/- 15%


Sizes: 500VA, 750VA, 1000VA, 1500VA, 2000VA, 3000VA, 5kVA, 6kVA, 8kVA, 10kVA, 15kVA, 20kVA


Input Voltage: 120V / 208V


Output Voltage Regulation: +/- 1%

Battery Runtimes: Various See Data Sheet or Request Runtime


OPTIONS: Maintenance Bypass, Power Distribution Module, External Battery Modules


Equivalent Model: GXT 3, GXT 4


CLASS: Active Voltage Correction, Type VRP


CORRECTS: Voltage Sags to 20% of nominal. Holds output voltage constant within +/- 3% output.


APPLICATIONS: Sensitive Instruments, Labs, Robotics, Plant and Process, Semiconductors, All Processes and Controls.


ROI: Reduced PCB and Board Failures, Reduced Downtime, Reduced Maintenance Costs. Typically 3-5 Years.

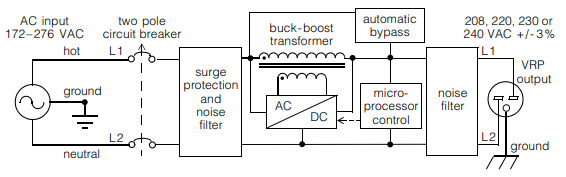

How a High Speed Pulse Width Modulated Regulator System Works

Highest Efficiency Design in AVR Technology Compared to Tap Switch, Servo and Dual Conversion

Technology

The TSI VRP Model Active Voltage Regulator provides a significant improvement on the slow traditional, electromechanical AVR, the electronic tap-switching AVR, and the dual-conversion AVR. It provides many of the attractive features of these technologies without trading off performance and efficiency. Today's Sensitive Controls Environment requires a responsive, efficient, and consistent voltage sterilization source.


Pulse Width Modulated with Intergate BI Polar Transistor Converter

The PWM topology is a buck-boost transformer with a primary to secondary ratio of 5:1 for a voltage correction of +/-20% (Figure Above). The input phase is connected to one end of the secondary, while the critical load is connected to the other end of the secondary with the current returning to the source via the neutral wire. The control voltage is imposed on the primary winding by connecting one end of the primary to the incoming phase, while the other end of the primary is connected to the neutral. In this manner, 20% of the input voltage will be added to the secondary winding. If the connections are reversed, the voltage will drop 20% as the magnetic flux imposed by the primary winding is bucking the secondary winding. Input Circuit breakers provide for component and load overcurrent protection.


BENEFITS of TSI DESIGN

  • Precision Voltage Regulation
  • No Switching of Power Path
  • Automatic Bypass
  • Over 96% Efficiency
  • Meets UL 60950 Requirements.
  • Overcurrent Protection
  • Compact Design

Request Pricing - Brochures - Help!

Get Help with Sizing Your UPS System, Runtimes and Power Requirements for Your Installation

Request a Quote

Ask Us Any Question!

INSTALLATION: Ferrups Model UPS Systems

120V Single Phase

FE500 - 500VA - 120V in/out

Eaton FERRUPS FE500VA UPS

6’ Input Power cord with Nema 5-15P

Output Receptacles: (4) NEMA 5-15R

Battery Runtime: 9 min 100% load / 25 min 50% load.


FE700 - 700VA - 120V in/out

Eaton FERRUPS FE700VA UPS

6’ Input Power cord with Nema 5-15P

Output Receptacles: (4) NEMA 5-15R

Battery Runtime: 14 min 100% load / 35 min 50% load.


FE850 - 850VA - 120V in/out

Eaton FERRUPS FE850VA UPS

6’ Input Power cord with Nema 5-15P

Output Receptacles: (4) NEMA 5-15R

Battery Runtime: 11 min 100% load / 28 min 50% load.


FE1.4 -  1400VA - 1.4kVA -  120V

Eaton FERRUPS FE1.4KVA UPS

Model - 120V Unit

Battery Runtime: 14 min 100% load / 37 min 50% load

  • System capacity 1.4KVA / 1KW
  • 120V single phase input - 6' Line Cord Receptacle Required Nema 5-15P
  • Input Circuit Breaker 15A Required
  • Output Receptacles: (6) NEMA 5-15R
  • Dimensions 21.2"H x 15.25"W x 22.9"D
  • Weight 154 lb


FE1.8 -  1800VA - 1.8kVA -  120V

Eaton FERRUPS FE1.8KVA UPS

Model - FF010CC3A0A0A0B 120V Unit

Battery Runtime: 11 min 100% load / 30 min 50% load

  • System capacity 1.8KVA / 1.25KW
  • 120V single phase input - 6' Line Cord Receptacle Required Nema 5-20P
  • Input Circuit Breaker 20A Required
  • Output Receptacles: (6) NEMA 5-15R
  • Dimensions 21.2"H x 15.25"W x 22.9"D
  • Weight 183 lb


FE2.1 -  2,100VA - 2.1kVA -  120V

Eaton FERRUPS FE2.1KVA UPS

Model - 120V Unit

Battery Runtime: 9 min 100% load / 25 min 50% load

  • System capacity 2.1KVA / 1.5KW
  • 120V single phase input - 6' Line Cord Receptacle Required Nema 5-20P
  • Input Circuit Breaker 20A Required
  • Output Receptacles: (6) NEMA 5-15R
  • Dimensions 21.2"H x 15.25"W x 22.9"D
  • Weight 196 lb


FE3.1 -  3,100VA - 3.1kVA -  120V

Eaton FERRUPS FE3.1KVA UPS

Model - 120V Unit

Battery Runtime: 14 min 100% load / 35 min 50% load

  • System capacity 3.1KVA / 2.2KW
  • 120V single phase input - 6' Line Cord Receptacle Required Nema 5-30P
  • Input Circuit Breaker 30A Required
  • Output Receptacles: (6) NEMA 5-15R
  • Dimensions 21.2"H x 15.25"W x 22.9"D
  • Weight 256 lb


FE4.3 -  4,300VA - 4.3kVA -  120V

Hardwired Connection input/output

Eaton FERRUPS FE4.3KVA UPS

Model FI000AA0A0A0A0B - 120V Unit

Battery Runtime: 10 min 100% load / 24 min 50% load

  • System capacity 4.3KVA / 3.0KW
  • 120V single phase input and output, hardwired - Input Circuit Breaker 40A Required
  • Dimensions 29.5 "H x 15.5"W x 25"D
  • Weight 359 lb


FE5.3 -  5,300VA - 5.3kVA -  120V

Hardwired Connection input/output

Eaton FERRUPS FE5.3KVA UPS

Model FJ000AA0A0A0A0B - 120V Unit

Battery Runtime: 20 min 100% load / 50 min 50% load

  • System capacity 5.3KVA / 3.7KW
  • 120V single phase input and output, hardwired - Input Circuit Breaker 40A Required
  • Dimensions 29.5 "H x 15.5"W x 25"D
  • Weight 505 lb


FE7 -  7,000VA - 7kVA -  120V in/out

Hardwired Connection input/output

Eaton FERRUPS FE7KVA UPS

Model FK000AA0A0A0A0B - 120V Unit

Battery Runtime: 12 min 100% load / 33 min 50% load

  • System capacity 7KVA / 5KW
  • 120V single phase input and output, hardwired - Input Circuit Breaker 40A Required
  • Dimensions 36.5”H x 19.0”W x 32.0"D
  • Weight 604 lb

208V / 240 Single Phase

FE4.3 -  4,300VA - 4.3kVA -  120/208V/240 in/out

Hardwired Connection input/output

Eaton FERRUPS FE4.3KVA UPS

Model FI100AA0A0A0A0B - 208V Unit

Model FI300AA0A0A0A0B - 240V Unit

Battery Runtime: 10 min 100% load / 24 min 50% load

  • System capacity 4.3KVA / 3.0KW
  • 208V single phase input and output, hardwired - Input Circuit Breaker 25A Required
  • 240V single phase input and output, hardwired - Input Circuit Breaker 20A Required
  • Dimensions 29.5 "H x 15.5"W x 25"D
  • Weight 359 lb


FE5.3 -  5,300VA - 5.3kVA -  120/208V/240 in/out

Hardwired Connection input/output

Eaton FERRUPS FE5.3KVA UPS

Model FJ100AA0A0A0A0B - 208V Unit

Model FJ300AA0A0A0A0B - 240V Unit

Battery Runtime: 20 min 100% load / 50 min 50% load

  • System capacity 5.3KVA / 3.7KW
  • 208V single phase input and output, hardwired - Input Circuit Breaker 30A Required
  • 240V single phase input and output, hardwired - Input Circuit Breaker 25A Required
  • Dimensions 29.5 "H x 15.5"W x 25"D
  • Weight 505 lb


FE7 -  7,000VA - 7kVA -  120/208V/240 in/out

Hardwired Connection input/output

Eaton FERRUPS FE7KVA UPS

Model FK100AA0A0A0A0B - 208V Unit

Model FK300AA0A0A0A0B- 240V Unit

Battery Runtime: 12 min 100% load / 33 min 50% load

  • System capacity 10KVA / 7.5KW
  • 208-208/120V single phase input and output, hardwired - Input Circuit Breaker 40A Required
  • 240V single phase input and output, hardwired - Input Circuit Breaker 35A Required
  • Dimensions 36.5”H x 19.0”W x 32.0"D
  • Weight 604 lb


FE10 - 10,000VA - 10kVA -  120V/208V/240 in/out

Hardwired Connection input/output

Eaton FERRUPS FE10KVA UPS

Model FL340AA0A0A0A0B - 208V Unit

Model FL340AA0A0A0A0B - 240V Unit

Battery Runtime: 11 min 100% load / 26 min 50% load

  • System capacity 10KVA / 7.5KW
  • 208-208/120V single phase input and output, hardwired - Input Circuit Breaker 60A Required
  • 240V single phase input and output, hardwired - Input Circuit Breaker 50A Required
  • Dimensions 36.5”H x 19.0”W x 32.0"D
  • Weight 875 lb


FE12.5 - 12,500VA - 12.5kVA -  120V/208V/240 in/out

Hardwired Connection input/output

Eaton FERRUPS FE12.5KVA UPS

Model FM140AA0A0A0A0B - 208V Unit

Model FM340AA0A0A0A0B - 240V Unit

Battery Runtime: 18 min 100% load / 48 min 50% load

  • System capacity 12.5KVA / 10KW
  • 208-208/120V single phase input and output, hardwired - Input Circuit Breaker 75A Required
  • 240V single phase input and output, hardwired - Input Circuit Breaker 65A Required
  • Dimensions 36.5”H x 19.0”W x 32.0"D
  • Weight 1089 lb

FE18 - 18,000VA - 18kVA -  120V/208V/240 in/out

Hardwired Connection input/output

Eaton FERRUPS FE18KVA UPS

Model FN140AA0A0A0A0B

Battery Runtime: 10 min 100% load / 26 min 50% load

  • System capacity 18KVA / 15KW
  • 208-208/120V single phase input and output, hardwired - Input Circuit Breaker 115A Required
  • 240V single phase input and output, hardwired - Input Circuit Breaker 100A Required
  • Dimensions 36.5”H x 19.0”W x 32.0"D
  • Weight 1362 lb

Ferrups FX Comparison

FE3.1 -  3,100VA - 3.1kVA -  120V

Hardwired Connection input/output

Eaton FERRUPS FE3.1KVA UPS

Model FX310001AAA1 - 120V Unit

Battery Runtime: 24 min 100%load / 55 min 50% load

  • System capacity 3.1KVA / 2.2KW
  • Input Circuit Breaker 30A Required
  • Dimensions 23.2"H x 15.4"W x 26.4"D
  • Weight 280 lb


New Ferrups FX Series Eaton UPS

Reliability of the legacy Ferrups Model with new options and look. New Ferrups FX Series is designed for harsh environments and can be configured for long runtime scenarios.


Runtime Options


189 min 100% load / 405 min 50% load

FXEBM01 - Ferrups FX 48VDC EBM - 70Ah


282 min 100% load / 601 min 50% load

FXEBM03 - Ferrups FX 48VDC EBM - 70Ah


359 min 100% load / 780 min 50% load

FXEBM04 - Ferrups FX 48VDC EBM - 100Ah


562 min 100% load / 1186 min 50% load

FXEBM05 - Ferrups FX 48VDC EBM - 140Ah


565 min 100% load / 1209 min 50% load

FXEBM06 - Ferrups FX 48VDC EBM - 140Ah


Predict Pulse Remote Monitoring

Ferrups FX Series New Sleek Look

INSTALLATION: Three Phase AVR Systems

120/208V 3-Phase

6kVA -        120V/208V in/out

Hardwired Connection input/output

(Input circuit breaker Required 20 Amp)


9kVA -        120V/208V in/out

Hardwired Connection input/output

Option: NEMA L21-30P in and out

(Input circuit breaker Required 30 Amp)


14kVA -        120V/208V in/out

Hardwired Connection input/output

(Input circuit breaker Required 50 Amp)


23kVA -        120V/208V in/out

Hardwired Connection input/output

(Input circuit breaker Required 80 Amp)


29kVA -        120V/208V in/out

Hardwired Connection input/output

(Input circuit breaker Required 100 Amp)


50kVA -        120V/208V in/out

Hardwired Connection input/output

(Input circuit breaker Required 150 Amp)

400V 3-Phase

6kVA -        400V/415V in/out

Hardwired Connection input/output

(Input circuit breaker Required 20 Amp)


8kVA -         400V/415V in/out

Hardwired Connection input/output

Option: NEMA L21-30P in and out

(Input circuit breaker Required 30 Amp)


17kVA -        400V/415V in/out

Hardwired Connection input/output

(Input circuit breaker Required 50 Amp)


24kVA -        400V/415V in/out

Hardwired Connection input/output

(Input circuit breaker Required 100 Amp)


28kVA -        400V/415V in/out

Hardwired Connection input/output

(28kVA Input circuit breaker Required 50 Amp)


44kVA -        400V/415V in/out

Hardwired Connection input/output

(44kVA Input circuit breaker Required 80 Amp)


55kVA, -    400V/415V in/out

Hardwired Connection input/output

(55kVA Input circuit breaker Required 100 Amp)


83kVA -    400V/415V in/out

Hardwired Connection input/output

(83kVA Input circuit breaker Required 150 Amp)


104kVA -    400V/415V in/out

Hardwired Connection input/output

(104kVA Input circuit breaker Required 175 Amp)

480V 3-Phase

10kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 15 Amp)


20kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 30 Amp)


27kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 100 Amp)


33kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 50 Amp)


53kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 80 Amp)


66kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 100 Amp)


125kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 175 Amp)


150kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 200 Amp)


166kVA -        480V in/out

Hardwired Connection input/output

(Input circuit breaker Required 220 Amp)

AVR Model Voltage Performance

120V Power Correction

  • Input Voltage Swings of 95~145 VAC
  • Critical Input Voltage Range: 79% lagging to +120%
  • Corrects to: 97%/103% Voltage Output
  • Corrects 20% Swing in Voltage from nominal 120V.



Response Time

  • 10MS> (1/2 Line Cycle)

230V Power Correction

  • Input Voltage Swings of 184~276 VAC
  • Critical Input Voltage Range: 79% lagging to +120%
  • Corrects to: 97%/103% Voltage Output
  • Corrects 20% Swing in Voltage from nominal 230V.


Response Time

  • 10MS> (1/2 Line Cycle)

240V Power Correction

  • 240V Input Voltage Swings of 192~288 VAC
  • Critical Input Voltage Range: 79% lagging to +120%
  • Corrects to: 97%/103% Voltage Output
  • Can Correct 20% Swing in Voltage from nominal 240V.


Response Time

  • 10MS> (1/2 Line Cycle)

Snapshot, Tech Specs, PDFs

Download our brochure and user guides to learn more about our products.

FGC Customer Advantage

Comprehensive Lifetime Service Support for your AVR Equipment

7 x 24 Emergency Service Response

24x7 emergency service Services through FGC Services and Response Platform

Preventative Maintenance Plans Provided by FGC Services

Keep all your systems free of downtime with Preventative Maintenance Programs.

Plans include Full Service, Preventative Maintenance Plus Emergency Response, and PM Only.

100% parts coverage

Parts coverage inside your warranty period, extended plans available for Annual or Multi-Year Programs

Asset Management Program

Roll all your Critical Assets and Maintenance Programs into one location - Facility Keys Preferred Platform

7x24 Emergency Response

National Service Coverage for Emergency Calls, On-Site Response, and Remediation.

Voltage Regulator vs. UPS: What are my Choices?

There are many differences between the choice of an AVR, AVC, UPS. Much if it depends on the issue you are trying to correct.

Correcting Voltage Not Outages

Most Data Center Designed UPS Systems are built to withstand minutes if not longer of complete power absence. Being designed to make almost perfect power until it is not there, systems are designed with highly efficient inverter systems and other components. Loads on these systems are often constant, non-reactive loads, and low in-rush. These systems, however, does not perform well in an active load environment, high in-rush current environment, and take in large input windows of voltage to repair.

New Title

Remote Diagnostic Services for Rapid Response

Uptime assurance

  • Continuous monitoring for early detection of trends and operating anomalies
  • Analysis and interpretation of alarm and status messages


Rapid incident response

  • Automatic transmission of data for analysis
  • Concurrent diagnosis and dispatch of engineer to site
  • Shipment of parts for corrective maintenance


Increased insight and ease of management

  • Notification of operating conditions that may impact system health
  • Periodic trend and analysis reports
  • Integration of remote and on-site services to ensure business continuity

Contact Us

We Can Help Answer Any Unanswered Questions

Experienced Product Representatives are on hand to send you information and quotations for equipment. If you need help with sizing, installation planning, or general questions about products, please fill in the appropriate form below and someone will contact you shortly.


You may also call 844-501-1887 to get a direct product representative. Or you may chat with one of our product specialists in the chat box provided.

Vertiv GXT 5 UPS VRLA / Lithium Contact Form

Share by:
