Vertiv Liebert GXT5
5kVA, 10kVA, 12kVA, 15kVA, 20kVA
Technology Choice: BEST - Double Conversion UPS System
Why? Both Rectifier and inverter systems work to convert power AC to DC, DC back to AC with constant Inverter Conditioned Power to +/- 1% Voltage Variation on output.
Power Correction Level 1: +/- 1 % on Output Power
Input Voltage Tolerance: +/- 15%
Sizes: 500VA, 750VA, 1000VA, 1500VA, 2000VA, 3000VA, 5kVA, 6kVA, 8kVA, 10kVA, 15kVA, 20kVA
Input Voltage: 120V / 208V
Output Voltage Regulation: +/- 1%
Battery Runtimes: Various See Data Sheet or Request Runtime
OPTIONS: Maintenance Bypass, Power Distribution Module, External Battery Modules
Equivalent Model:
GXT 3, GXT 4

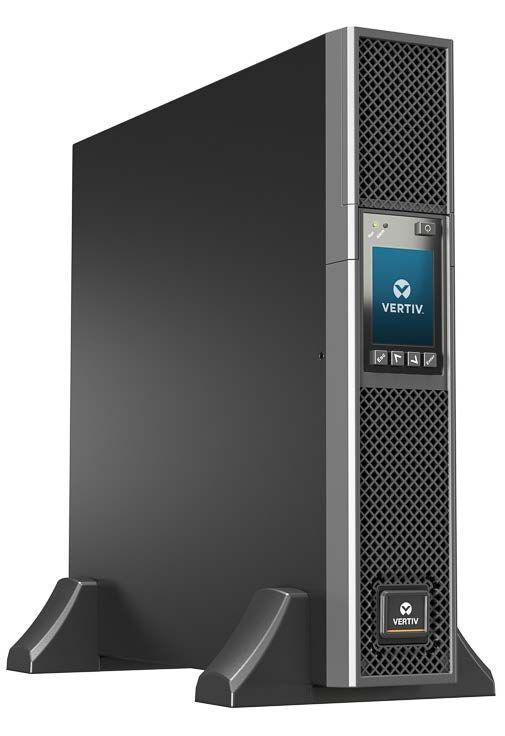

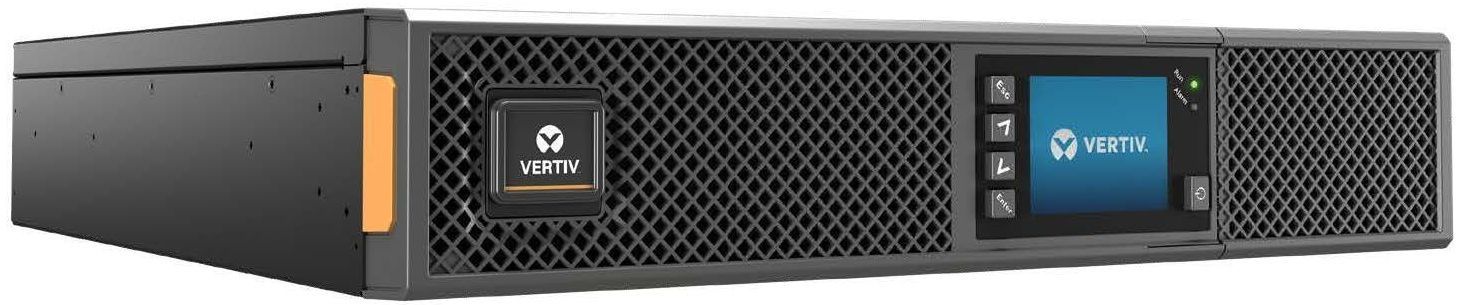

Vertiv™ Liebert® Model GXT 5 UPS System
Intelligent and Efficient UPS for Protection of Your Mission-Critical Applications
The Vertiv™ Liebert® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower form factor.
The Liebert GXT5 single-phase UPS operates with high power efficiency, making it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. Plus, the Liebert GXT5 provides battery health status and replacement date prediction for intelligent battery health management.
The UPS system is easy to deploy and maintain due to its user-friendly LCD interface and remote management capabilities supported by the Vertiv RDU101 communications card which makes the Liebert GXT5 compatible with Vertiv infrastructure management solutions such as LIFE™ Services, environmental sensors, Trellis™ Power Insight, and more.
Request Pricing - Brochures - Help!
Get Help with Sizing Your UPS System, Runtimes and Power Requirements for Your Installation
Ask Us Any Question!
Snapshot, Tech Specs, PDFs
Download our brochure and user guides to learn more about our products.
User Manuals
Liebert GXT5 Features
Leading UPS Technology
- High output power factor = up to 1.0
- Full-color graphic LCD with gravity sensing orientation
- Individually controllable output power sockets
- External battery cabinets with auto-detection
- Battery health status and replacement date prediction
- Remote management, update, and configuration capabilities
- Optimized thermal management and variable speed fan
Efficient and Green Product
- High efficiency in online mode
- Energy Star® 2.0 certified
- Even higher efficiency (up to 98%) in Active ECO mode
- Programmable outlets for power cycling hung equipment and optimum battery usage
- Compliance with Restriction of Hazardous Substances (RoHS) directive and the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) regulation
Solutions Wide
- Compact rack/tower design
- Broad range of services and extended warranty
- Easy to install, configure and operate
- Vertiv RDU101 network communications card with advanced features
- Compatibility with environmental sensors
- Integrated dry-contacts with selectable definition
- Free Trellis™ Power Insight management software
- Serial port for out-of-band management with Avocent® serial consoles
- Automatic internal bypass and external maintenance bypass options
How You Benefit from the Vertiv™ Liebert® GXT5 UPS
Designed for high availability
- The higher power factor (0.9 - 1.0) ensures the connection of more loads and IT equipment
- With individually controlled output receptacles, you can manage power to individual devices without impacting other critical network equipment operation
- Minimum downtime of the device provided by hot-swappable, user-replaceable battery modules which can be changed during operation
- LIFE™ Services helps to enhance uptime, as well as operational efficiency with continuous remote monitoring, expert analysis, and proactive response
- Automatic self-test
User-friendly installation and operation
- Easy-to-read, gravity-sensing graphical color display
- Intuitive user interface for local configuration and management
- Support for the Vertiv suite of remote management tools (Trellis™ Power Insight, RDU101 network interface card, and serial connectivity support)
- Auto-detection of external battery cabinets enables faster deployment and accurate runtime information
- Remote UPS firmware upgrade capability ensures the UPS has the latest features and enhancements
Longer service life and runtime of the batteries
- Extended runtimes provided by the addition of external battery cabinets
- Improved battery care by temperature-compensated battery charging
- Intelligent battery health management ensures a longer service life (optimized battery maintenance and replacement when needed)
Optimized energy and capacity management
- Active ECO operating mode with up to 98% efficiency
- Efficiency in online double conversion mode up to 95%
- Energy Star 2.0 certified
- Four individually programmable output receptacles can be use to extend runtime for the most critical loads and smart disconnection of the less critical ones
Seamless connectivity
- Four onboard, user-definable dry contact I/O for integration of support management systems
- Supports SNMP, web, and environmental sensors with the optional RDU101 communications card
- Serial connection for integration of Avocent® ACS product or direct serial management and control of the UPS
Services and support
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.
Power Assurance Package:
Comprehensive Service Support for Critical Systems
Five-year protection plan
Five-year protection plan with 100% parts coverage and 24x7 emergency service
On-site installation and startup
of UPS and internal batteries (excludes hard-wired applications); configuration of new UPS and accessories; and if purchased, safe removal and disposal of legacy UPS and batteries
100% parts coverage
for UPS and includes internal batteries, POD (power output distribution), and web card
24x7 access
to customer resolution center and online access to Customer Services Network
Key benefits:
- Hassle-free management of multi-site rollouts
- Frees up time-strapped IT staff by managing and tracking UPS health, maintenance and service
- Reduces the worry of critical equipment downtime
- Ensures rapid recovery in the event of failure (within 24-48 hours)
- Frees you from the responsibility of handling and documenting the disposal of legacy UPS and batteries
Remote Diagnostic Services for Rapid Response
Uptime assurance
- Continuous monitoring for early detection of trends and operating anomalies
- Analysis and interpretation of alarm and status messages
Rapid incident response
- Automatic transmission of data for analysis
- Concurrent diagnosis and dispatch of engineer to site
- Shipment of parts for corrective maintenance
Increased insight and ease of management
- Notification of operating conditions that may impact system health
- Periodic trend and analysis reports
- Integration of remote and on-site services to ensure business continuity
