Eaton 9PXM UPS
Sizes: 4kVA, 8kVA, 12kVA, 16kVA, 20kVA
Eaton

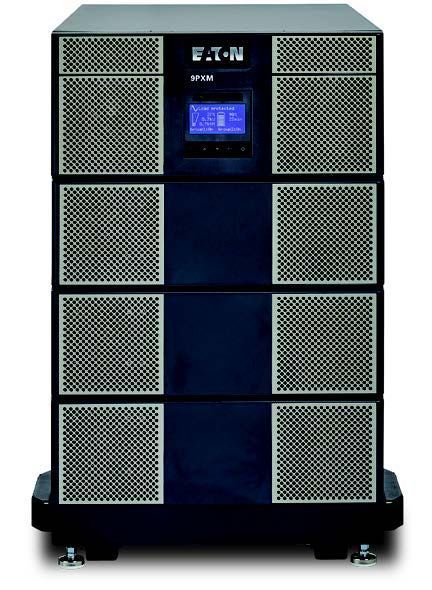

9PXM UPS
A scalable, modular, flexible solution for a wide range of applications.
The Eaton® 9PXM UPS is a scalable, modular, flexible solution that combines the highest level of reliability with the lowest cost of ownership in the 4–20 kVA range. The 9PXM enables you to build a power solution specific to your needs and to expand redundancy and runtime as your needs change.
The plug-and-play power and battery modules are user replaceable so you can add them as needed without a service call or having to put a redundant system in bypass. With its low initial investment, online double-conversion technology, Eaton ABM® technology and high efficiency mode, you never have to compromise reliability for efficiency.
Highest
level of reliability
Lowest
cost of ownership
Request Pricing
Build a power solution that is specific for your needs.
Ask Us Any Question!
The Eaton 9PXM: A versatile UPS
The versatile 9PXM is well suited for both the IT marketplace and for industrial/commercial applications. The 9PXM’s high power rating, small footprint and easy rack conversion make an ideal solution for an array of data center applications. The design features offer harmonious compatibility with 4-post or high density racks, PDU and network gear for seamless integration into an IT infrastructure.
IT applications include:
Small / medium data center
Network closets
Colocation data center
Edge data center
The 9PXM is rugged enough to stand up to mission-critical applications, and it’s small footprint, customizable output options and N+X redundancy are valuable features in the retail, financial and government sectors.
Industrial/commerical applications include:
Mission critical operations
- Small computer rooms
- Server farms

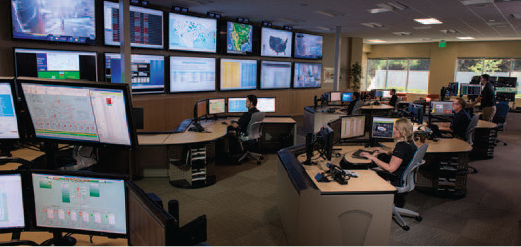

- 911 call centers
Retail and financial
- Retail back office inventory management systems
- POS equipment
- Banking automaton software systems
Government
- Voice and data networks/closets
- Government computer rooms
- School system computer rooms/classrooms
Build a power solution that is specific for your needs.
4kVA, 8kVA, 12kVA, 16kVA, 20kVA
N+1 Redundancy
Plan
- Form factor
- Customization
Grow
- Scalability
- Hot-swap modularity
Manage
- Software
- ABM technology
Designing a 9PXM
You can select a configure-to-order (CTO) number to reflect the cabinet form factor and output configurations.
Output connection configuration is designated by five digits within the unit CTO number.
As you select the options needed, they become part of the CTO number. Order power modules, battery modules, external battery cabinets, bypass switches and other external options as separate line items. Part numbers for external options are provided in the CTO guide found on page 6.
- 8-slot cabinet maximum 2-outlet output panels
- 12-slot cabinet maximum of 5-outlet output panels
- Outlet quantities per panel are pre-set
- Enter desired outlet configuration from bottom to top (digit 9 of the CTO number will be installed in the bottom outlet panel, digit 10 in the panel above it, etc)
- For an 8-slot cabinet, digits 9–11 will always be XXX (ex: BE XXX)
Flexibility for every application.
1. Form factor

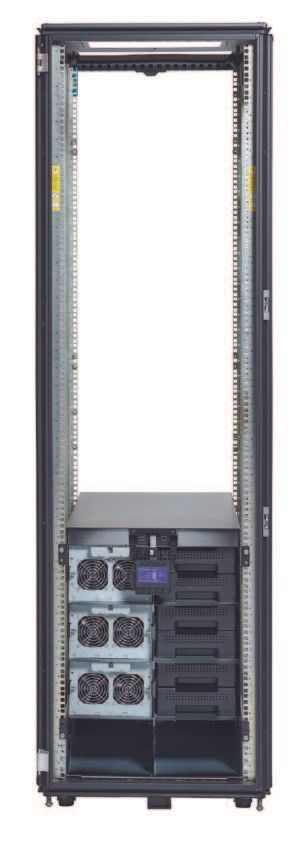

Two tower sizes convertible to rackmount.
2. Configurable back panel
Build-to-order configurations provide receptacle output options.
3. Redundancy
N+X redundancy for power and logic eliminates system-level single point of failure.
4. Scalability
Add power and battery modules to scale up power rating or add redundancy.
5. Flexibility
Add battery modules to any slot for extended backup runtime in a single unit cabinet.

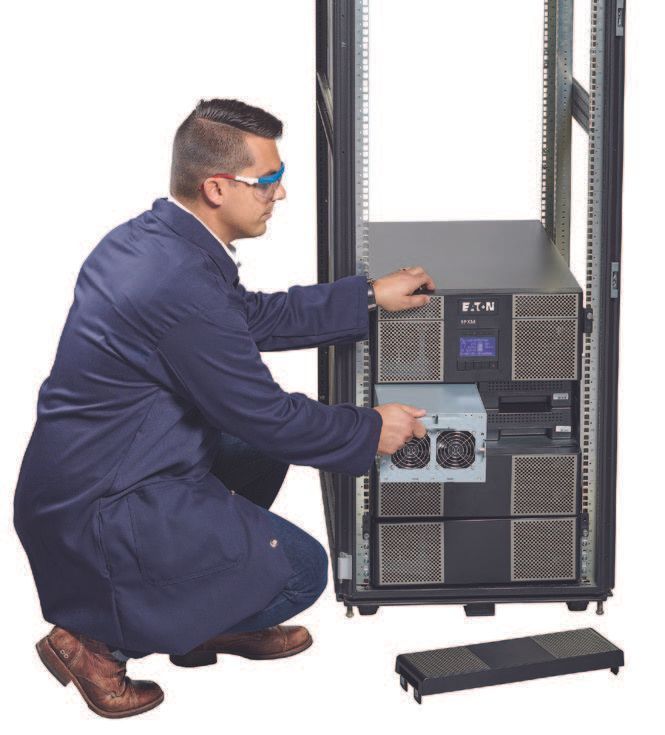

6. Hot-swappable modules
Replace lightweight power and battery modules without shutting down.
